机器特点

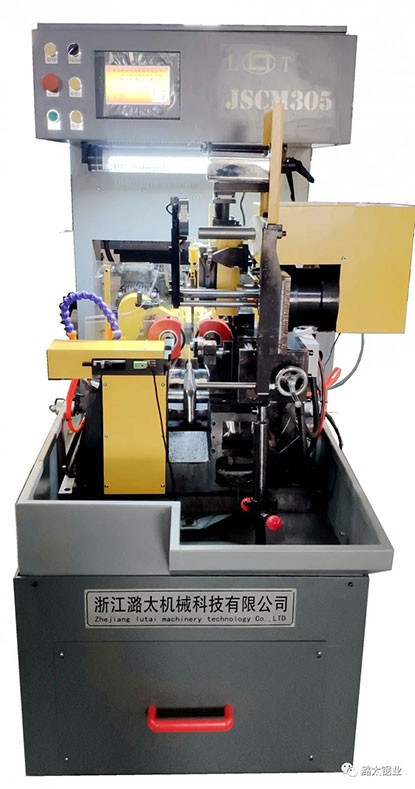

　　◆本机是对合金圆锯片双侧研磨的专用自动化设备。

　　◆磨削主体底部采用一体式加强铸件底板，稳定性好。

　　◆采用机械手上下锯片，操作简洁方便，一人可操作10台以上。

　　◆进退刀调整方便，可任意设定砂轮行程过程中进刀退刀组合模式。

　　◆电机拨齿**稳定。

　　◆砂轮磨削有自动补偿功能，砂轮磨损自动补偿。

Machine features

　　1. This machine is a specialized automated equipment for double-sided grinding of alloy circular saw blades.

　　2. The bottom of the grinding body adopts an integrated reinforced casting bottom plate, which has good stability.

　　3. Using a robotic arm to move the saw blade up and down, the operation is simple and convenient, and one person can operate more than 10 machines.

　　4. The adjustment of the feed and retreat knives is convenient, and the combination mode of feed and retreat knives during the grinding wheel stroke process can be set arbitrarily.

　　5. The motor teeth are precise and stable.

　　6. The grinding wheel has an automatic compensation function, and the grinding wheel wear is automatically compensated.

技术参数Technical parameter

◆锯片直径Blade diameter   φ110-φ305mm

◆齿距范围Range of tooth pitch   7—48mm

◆前角角度Front angle   0°~25°

◆砂轮规格Grinding wheel specifications   φ100×φ20mm

◆砂轮行程Grinding wheel stroke   0—28mm

◆砂轮转速Grinding wheel speed   5600r/min

◆工作气压Operating air pressure   ≥0.45MPa

◆电源电压Supply voltage   AC380V50Hz

◆功    率Power   2.2KW

◆重    量Weight   930kg

◆机床尺寸Machine size   1440×860×1770mm
