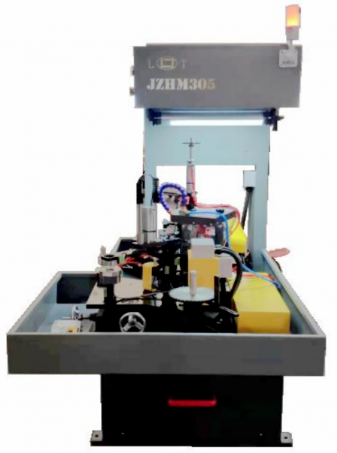

机器特点

　　◆本机是对合金圆锯片后角研磨的专用自动化设备。

　　◆采用机械手上下锯片，操作简洁方便，一人可操作10台以上。

　　◆常用齿型可一次性磨削完成，左右齿、左右平、左左左右、右右右左，可任意设定特殊齿形。

　　◆对左右齿进行了优化调整，操作方便，将左齿全部磨完、再磨右齿，减少了磨头摆动次数。

　　◆砂轮磨削有自动补偿功能，砂轮磨损自动补偿，保证了齿高差的一致性，提高了产品精度。

　　◆进给采用斜铁推动方式，提高加工精度。

Machine features

    1. This machine is a specialized automated equipment for grinding the rear corner of alloy circular saw blades.

    2. Using a robotic arm to move the saw blade up and down, the operation is simple and convenient, and one person can operate more than 10 machines.

    3. Common tooth profiles can be ground in one go, with left and right teeth, left and right flat, left and right left, right and right left, and special tooth profiles can be set arbitrarily.

    4. The left and right teeth have been optimized and adjusted for easy operation. The left teeth have been completely ground before the right teeth, reducing the number of grinding head swings.

    5. The grinding wheel has an automatic compensation function, which automatically compensates for the wear of the grinding wheel, ensuring the consistency of tooth height difference and improving product accuracy.

    6. The feed adopts an inclined iron pushing method to improve machining accuracy.

技术参数Technical parameter

◆锯片直径Blade diameter   φ110-φ305mm

◆齿距范围Range of tooth pitch   7—48mm

◆适用齿厚Applicable tooth thickness   ≤3.5mm

◆后角角度Rear angle   0°~30°

◆砂轮摆角Grinding wheel swing angle   -15°~15°

◆砂轮规格Grinding wheel specifications   φ125×φ20mm

◆砂轮行程Grinding wheel stroke   0—25mm

◆砂轮转速Grinding wheel speed   5600r/min

◆工作气压Operating air pressure   ≥0.45MPa

◆电源电压Supply voltage   AC380V50Hz

◆功    率Power   2.2KW

◆重    量Weight   720kg

◆机床尺寸Machine size   1540×1042×1770mm
