机器特点

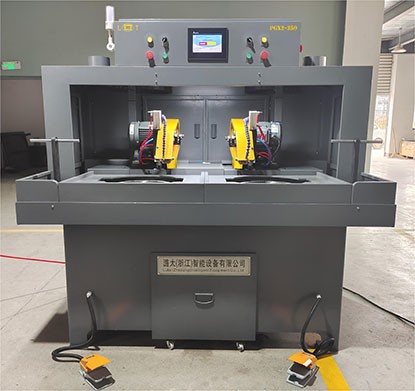

　　◆本机是对圆盘工件进行表面抛光的专用自动化设备。

　　◆两工位各自单独控制，互不影响。

　　◆转盘转速可在触摸屏更改。

　　◆砂带往返行程速度可调。

　　◆一键启动，自动落片和起片。

Machine features

　　1. This machine is a specialized automated equipment for surface polishing of circular workpieces.

　　2. The two workstations are controlled separately and do not affect each other.

　　3. The rotation speed of the turntable can be changed on the touch screen.

　　4. The speed of the sand belt's round trip is adjustable.

　　5. One click start, automatic drop and lift.

技术参数Technical parameter

◆锯片直径Blade diameter   φ110-φ305mm

◆工件厚度Workpiece thickness   ≤4mm

◆砂轮转速Grinding wheel speed   2460r/min

◆砂带尺寸Belt size   1230*35mm

◆工作气压Operating air pressure   ≥0.45MPa

◆电源电压Supply voltage   AC380V50Hz

◆功    率Power   8KW

◆重    量Weight   1250kg

◆机床尺寸Machine size   1812×1112×1750mm
