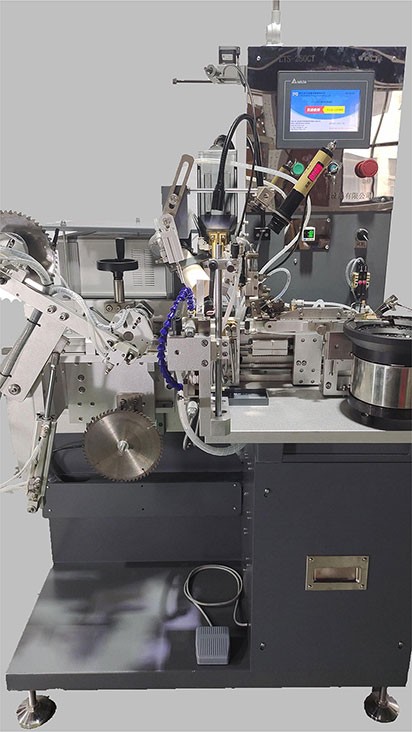

机器特点

　　◆本机是用于合金圆锯片锯齿自动焊接专用机械。

　　◆支持中焊、左右焊、隔齿焊、超薄片等功能。

　　◆采用机械手自动上下锯片，一人可操作10台以上。

　　◆全自动选齿、送料、焊接、回火，也可根据客户要求定制。

　　◆配有自动除烟机便于排除焊烟。

　　◆气爪采用双头结构直送焊接部位，利于小合金焊接及设备保养。

Machine features

　　1. This machine is a specialized machine for automatic welding of alloy circular saw blades.

　　2. Support functions such as middle welding, left and right welding, gear separation welding, ultra-thin film, etc.

　　3. Using a robotic arm to automatically move up and down the saw blade, one person can operate more than 10 machines.

　　4. Fully automatic gear selection, feeding, welding, tempering, and customization according to customer requirements.

　　5. Equipped with an automatic smoke remover for easy removal of welding fumes.

　　6. The air claw adopts a double headed structure to directly feed the welding area, which is conducive to small alloy welding and equipment maintenance.

技术参数Technical parameter

◆锯片直径Blade diameter   φ100-φ255mm

◆焊接效率Welding efficiency   500-750T/hour

◆合金长度Alloy length   3.5-10mm

◆合金宽度Alloy width   1.5-6.5mm

◆合金厚度Alloy thickness   1.5-3.5mm

◆焊接精度Welding accuracy   ≤0.08mm

◆工作气压Operating air pressure   ≥0.45MPa

◆工作水压Working water pressure    ≥4kg/cm²

◆电源电压Supply voltage    AC220V 50Hz

◆功    率Power   6.5KW

◆重    量Weight   300kg

◆机床尺寸Machine size   1150×1060×1430mm
